The most important part of any engine with a battery is the charging system. Today modern batteries and electrical components have higher performance but are more sensitive so for optimum extended life smart charging is needed.
Whether you are a recreational user, repair shop, or commercial user these regulators will more than pay for themselves through lower cost of operation of the vehicle, less hassle due to failures, and fewer repairs. The cost of the regulator is paid for with the first battery that you don't have to replace.

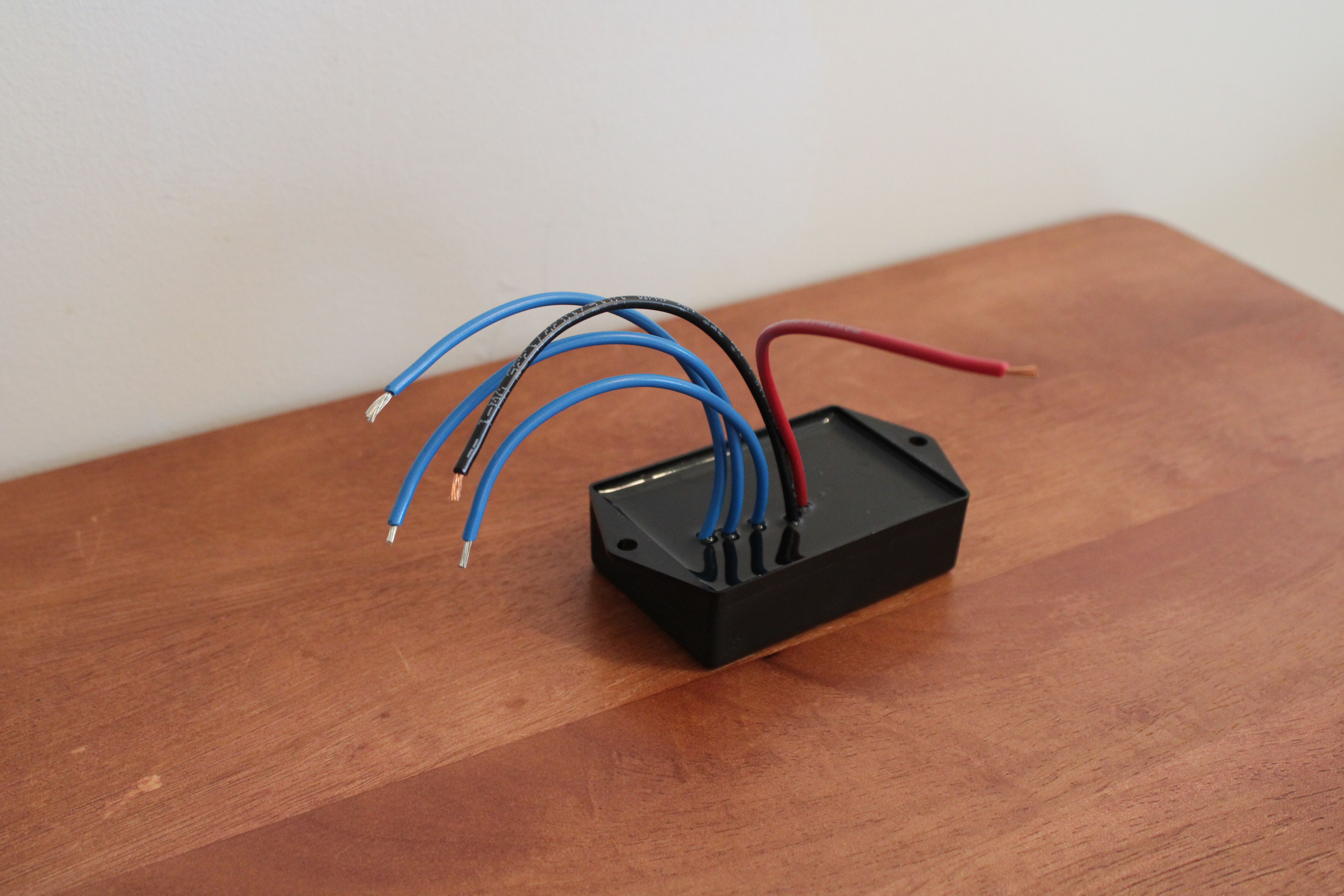

This series of regulators is intended for permanent magnet/stator electrical systems. Versions are available for 20A, 40A and 60A electrical systems.| Model | VREG20 | VREG40 | VREG60 |
| Dimensions (LxWxH) | 2”x3”x1” | 2”x3”x1.5” | 3”x3”x1.5” |
| Footprint | 2”x4” | 2”x4” | 3”x4” |
| Output Current(A) | 20 | 40 | 60 |
| Wire Size (AWG) | 18 | 14 | 10 |
| Temperature Range | -40°C to +85°C |
| Case Material | Plastic ABS |
| Wire Material | 105°C (Oil, water and flame resistant) |
| Reverse Leakage current | 3mA |
| Battery Voltage | 12.6V nominal |
| Chemistry | Sealed Lead Acid |
Contact your local distributor/representative for pricing and delivery on large quantities.

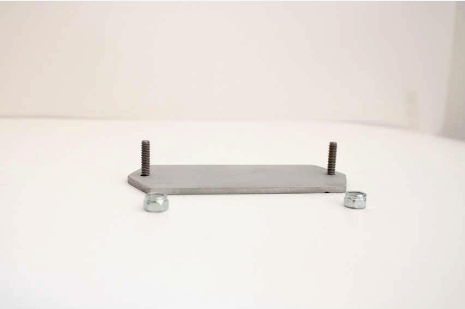

An aluminum interface plate is provided for mounting the regulator in many different applications. The regulator mechanical design and connector interface can be customised for OEM or high volume applications.
